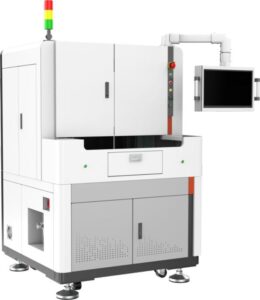

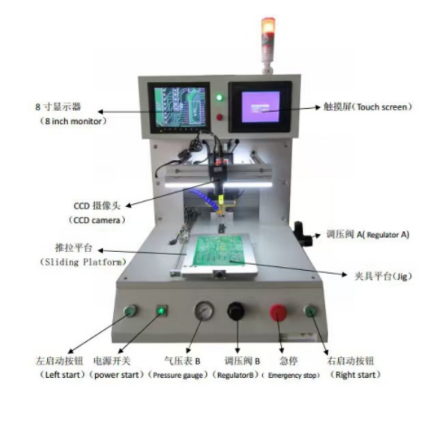

The heating can be adjusted according to different products; the welding head made of special materials ensures even pressure distribution on the product;
Equipped with a vacuum function, making alignment adjustment easier; temperature is digitally controlled, ensuring clarity and precision;
Equipped with a digital pressure gauge, with preset pressure range; microcomputer control, precise and stable;
Programmable cursor heating and cooling drives include preset temperatures;
Suitable for various high-density TAB, TCP crimping, as well as solder crimping of FPC, FFC, and PCB;
Adopt precise PID control, replacing pulse drive with phase angle;
Low vibration, low noise, and stable voltage; real-time display of temperature value and temperature data;
Input data through touch screen, simplifying operation.
Technical parameters
Specifications
ABT-RY500
Equipment size
660×660×700mm
Workbench size (mm)
Max 200×170mm
Machine weight (KG)
75
Working pressure (Mpa)
0.6-0.80 (Mainly used for solder joint cooling) (Standard 0.7Mpa)
Working power supply
AC220V±10%, 50HZ, 2KVA
Heating setting
Two sections
Work environment
10-60℃, 40%-95%
Weld pressure
1~20Kg
Temperature setting
RT~500℃ error ±5℃
Weld time
1-99.9S (Settable)
Hot pressing accuracy
Pitch 0.2mm
Thermal compression head size (mm)
MAX 60×33mm
Hot press fixture
1个
Alignment method
CCD+LCD display
Material release method
Manual handling
Start method
Two-hands control
Heating method
Pulse heating, with a rise time of 1-2 seconds
Push pull platform
Cylinder control, error <0.02mm

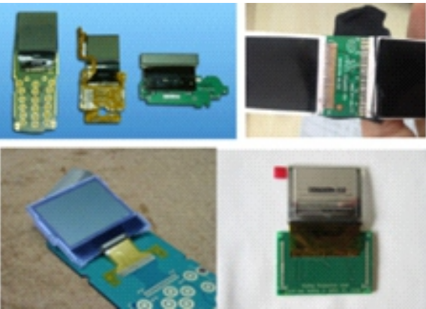

Application Area
Suitable for various high-density TAB, TCP crimping, as well as solder crimping of FPC, FFC, and PCB
