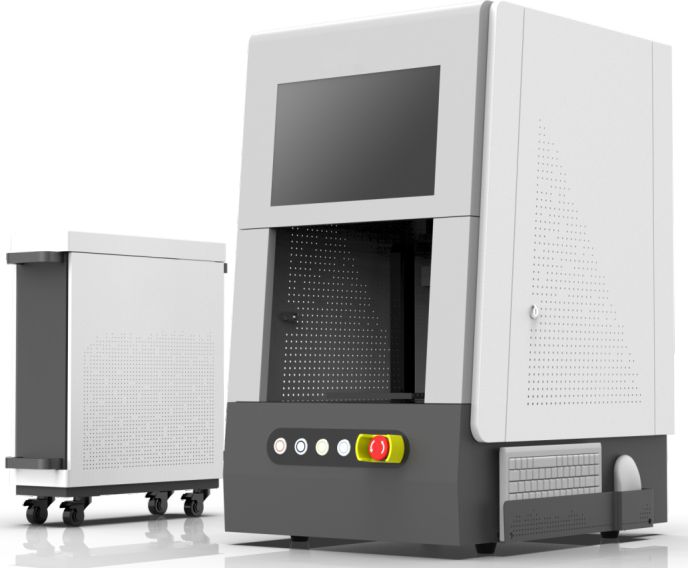

Desktop Laser Solder Ball Soldering Machine
Intoduction
The small table integrates high-quality fiber laser soldering and motion control to achieve soldering and ball placement in one system, making it suitable for a wide range of industries. The intelligent positioning system ensures high-precision automatic soldering, solves the challenges of soldering special devices, outperforms manual and soldering iron methods, and provides high-quality special application capabilities.
Equipment Advantages
- 3C, automotive electronics, medical, aerospace, semiconductor, and intelligent IoT industries
- School teaching experiments
- Factory NPI (New Product Introduction) sampling
- Research institute small-quantity and variety trial production
- Alternative to manual soldering
Machine Features
- Simple and efficient, with approximately 4,000 solder joints per hour
- Good uniformity and consistency
- No flux, no pollution, and no residue
Technical Parameters
| Item | Parameters |
|---|---|
| Model | MINI-LSB0307A |
| Laser Device | 75W / 150W (Optional) |
| Mechanical Repetition Precision | ±0.02 mm |
| Form of Exercise | 4-Axis Robot / X / Y / Z Module (Optional) |
| Effective Welding Range | 120 × 180 mm |
| Solder Ball | 300–760 μm |
| Power Supply | AC 220V, 1200 W |
| Dimensions | L580 × W730 mm |
| Net Weight | 150 kg |
