Automatic Optical Inspection Machine

Advanced Imaging & Inspection System

• All-Digital High-Speed CCD Camera for precise PCB inspection

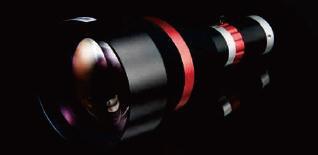

• Industrial Lens with High Resolution Imaging
• Ultra-Wide Depth of Field for accurate component detection
• Ultra-Low Distortion Optical Design
• Unique Parallel Light Technology for enhanced image clarity
• Captures clear PCB and tall component images without distortion

PCB Warp Compensation

• Real-Time PCB Bending Measurement & Compensation
• Supports board warpage correction up to less than 2 mm
• Provides clear PCB images and measurement data in real time
• Ensures accurate inspection even on warped boards

High-Speed Detection Performance

• High-speed inspection with maximum production throughput
• Fast and reliable defect detection
• Suitable for high-volume SMT production lines

High-Precision Mechanical Platform

• AC Servo Motor Drive System
• Precision Ball Screw Transmission
• High-Accuracy Linear Guide Rail Structure
• Fast, Stable, and Accurate Positioning
• Positioning Accuracy of less than 10 μm

3D Raster Projection Technology

• Shadow-Free 3D Inspection Capability
• Five-Step Phase Shift Algorithm
• Defocused Sine Grating Projection Technology
• Height Detection Accuracy up to 1 μm
• Eliminates measurement errors caused by shadows

User-Friendly Software & Interface

• Easy-to-Use Human-Machine Interface (HMI)
• Supports Gerber and CAD File Import
• Offline and Manual Programming Options
• Chinese and English Language Support

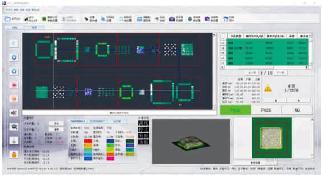

• Displays True-Color 2D & 3D Inspection Images
• Simplifies defect analysis and troubleshooting
• Supports multiple PCB Mark Point recognition methods
